Appliance connector

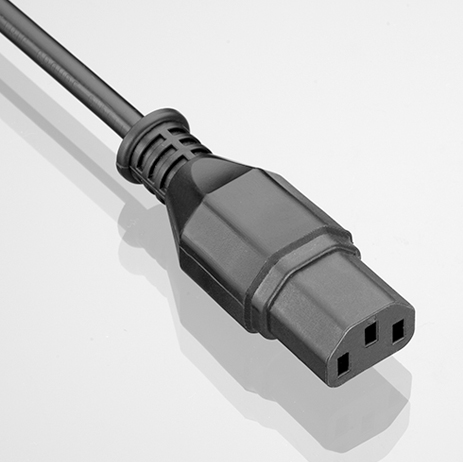

m71
Europe | M 71

appliance connector for safety class I

2-pole with earthing-contact
EN 60320-1:2001 C13, 10 A, 250 V~

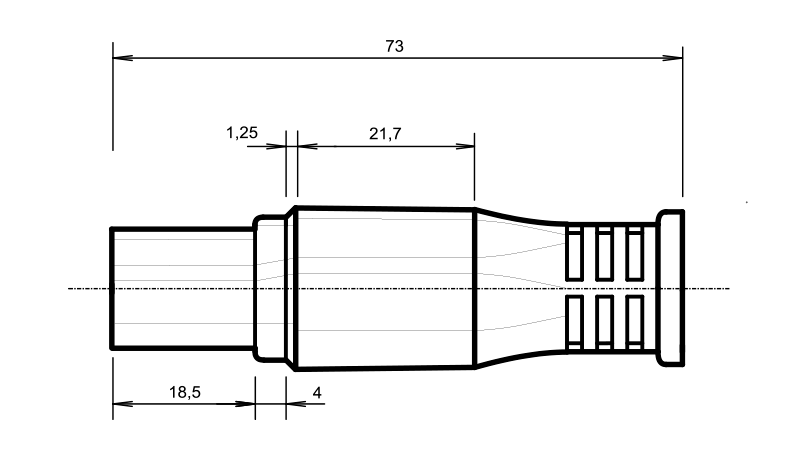

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 0,75
H05VV-F 3G 1,00
H05RR-F 3G 0,75
H05RR-F 3G 1,00
H05RR-F 3G 1,50
H05RN-F 3G 0,75
H05RN-F 3G 1,00
H07RN-F 3G 1,00
Enec05

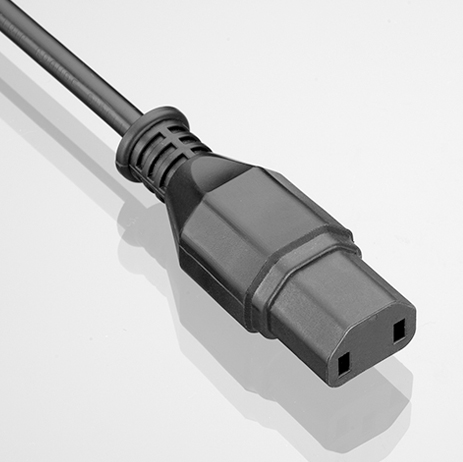

m72
Europe | M 72

appliance connector for safety class II

2-pole without earthing-contact
EN 60320-1:1996+A1:96+A2:98 C17,
10 A, 250 V~





Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 2X 0,75
H05VV-F 2X 1,00
H05VV-F 2X 1,50
H05RR-F 2X 0,75
H05RR-F 2X 1,00
H05RN-F 2X 0,75
H05RN-F 2X 1,00
H07RN-F 2X 1,00
H07RN-F 2X 1,50
Enec05

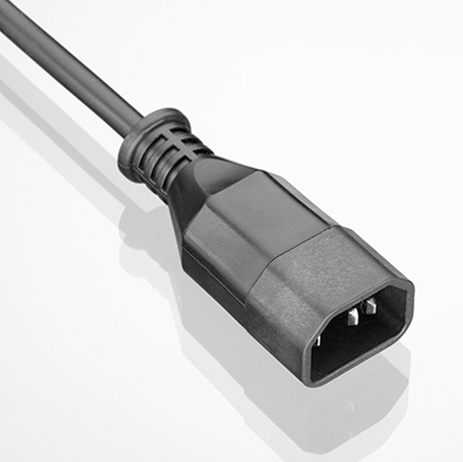

m74
Europe | M 74

plug connector for safety class I

2-pole with earthing-contact
EN 60320-2-2; 1998, 10 A, 250 V~



Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 0,75
H05VV-F 3G 1,00
H05RR-F 3G 0,75
H05RR-F 3G 1,00
H05RN-F 3G 0,75
H05RN-F 3G 1,00
H07RN-F 3G 1,00
Enec05

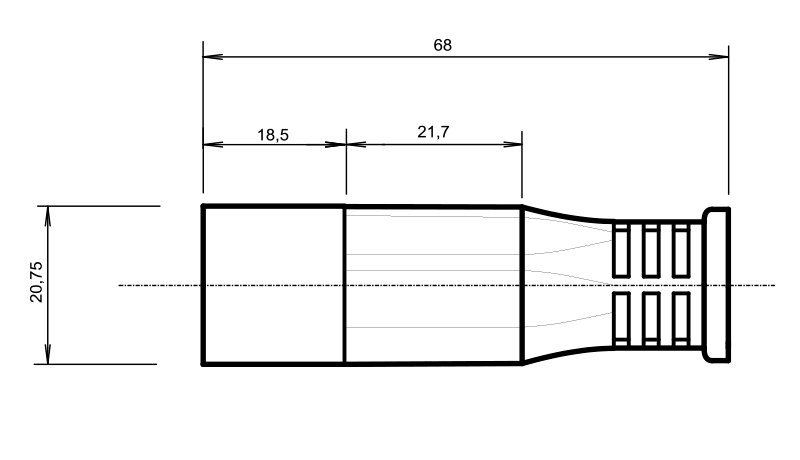

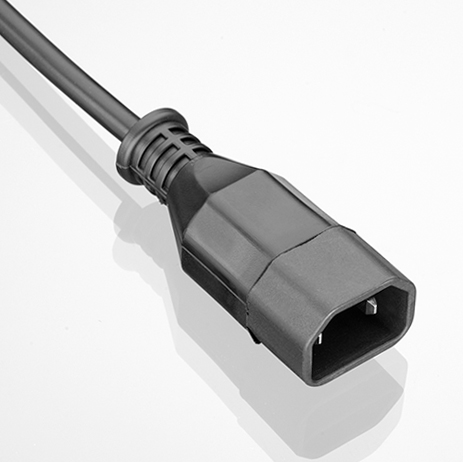

m75
Europe | M 75

plug connector for safety class II

2-pole without earthing-contact
EN 60320-2-2; 1998, 10 A, 250 V~





Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 2x0,75
H05VV-F 2x1,00
H05VV-F 2x1,50
H05RR-F 2x0,75
H05RR-F 2x1,00
H05RR-F 2x1,50
H05RN-F 2x0,75
H05RN-F 2x1,00
H07RN-F 2x1,00
Enec05

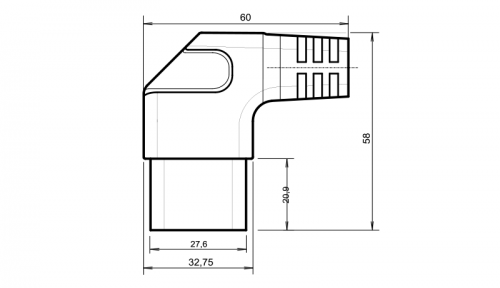

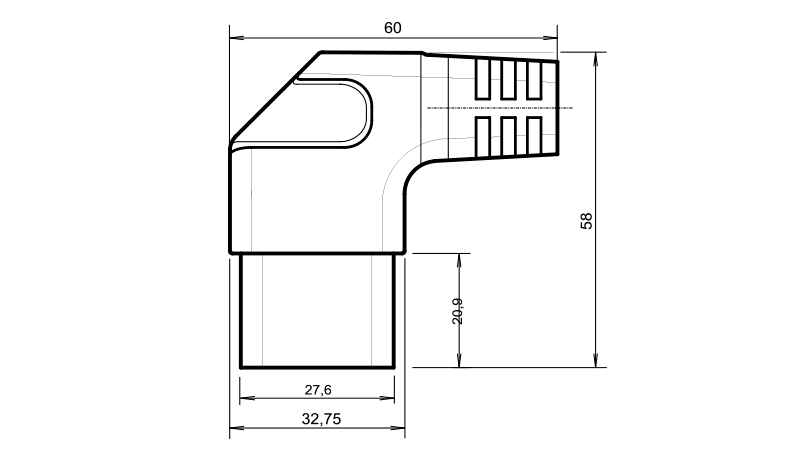

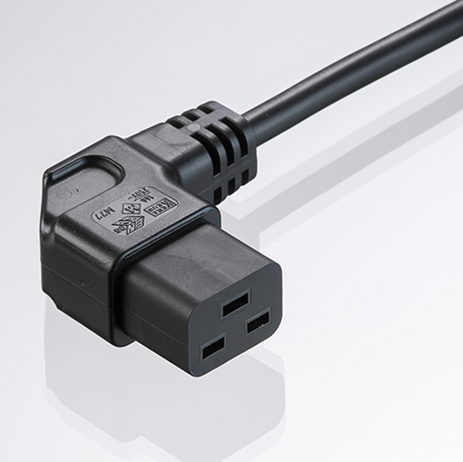

m77
Europe | M 77

appliance connector for safety class I

2-pole plug with earthing-contact,
cable entry left
EN 60320-1:2001+A1:2007 C19,
16 A, 250 V~



Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 1,50
H05VV-F 3G 2,50
H05V2V2-F 3G 1,50
H05RR-F 3G 1,50
H07RN-F 3G 1,50
H07RN-F 3G 2,50
H07BQ-F 3G 1,50
Enec05

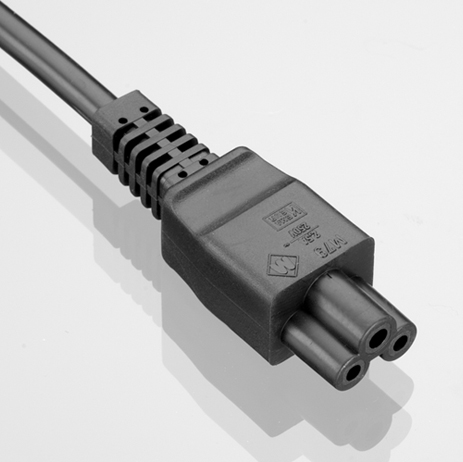

m79
Europe | M 79

appliance connector for safety class I

2-pole plug with earthing-contact
EN 60320-1:1996+A1:96+A2:98 C5,
2,5 A, 250 V~

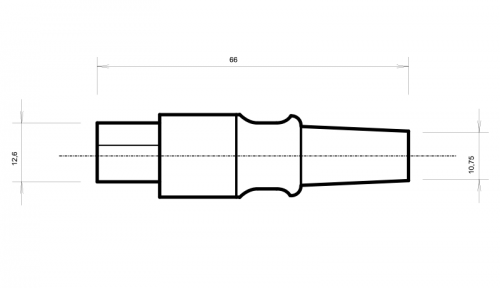

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H03VV-F 3G 0,75
H05VV-F 3G 0,75
Enec05

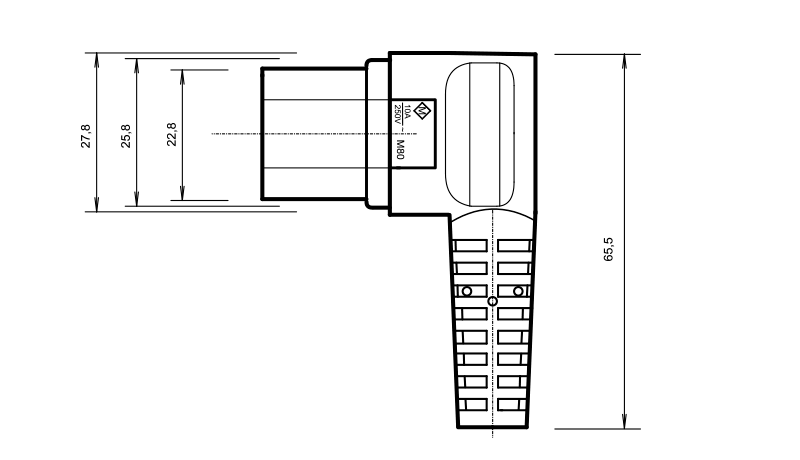

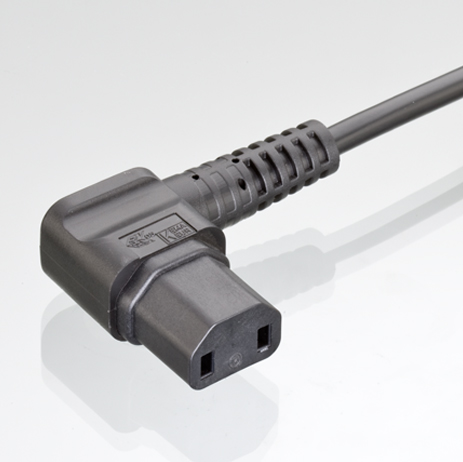

m80
Europe | M 80

appliance connector for safety class II

2-pole plug without earthing-contact,
cable entry left
EN 60320-1:1996+A1:98 C17,
10 A, 250 V~



Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 2X 0,75
H05VV-F 2X 1,00
H05VV-F 2X 1,50
H05RR-F 2X 0,75
H05RR-F 2X 1,00
H05RN-F 2X 0,75
H05RN-F 2X 1,00
H07RN-F 2X 1,00
H07RN-F 2X 1,50













Enec05
m81 ok
Europe | M 81

appliance connector for safety class I

2-pole plug without earthing-contact,
cable entry left
EN 60320-1:2001 C13, 10 A, 250 V~





Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 0,75
H05VV-F 3G 1,00
H05VV-F 3G 1,50
H05RR-F 3G 0,75
H05RR-F 3G 1,00
H05RR-F 3G 1,50
H05RN-F 3G 0,75
H05RN-F
3G 1,00
H07RN-F 3G 1,00











Enec05

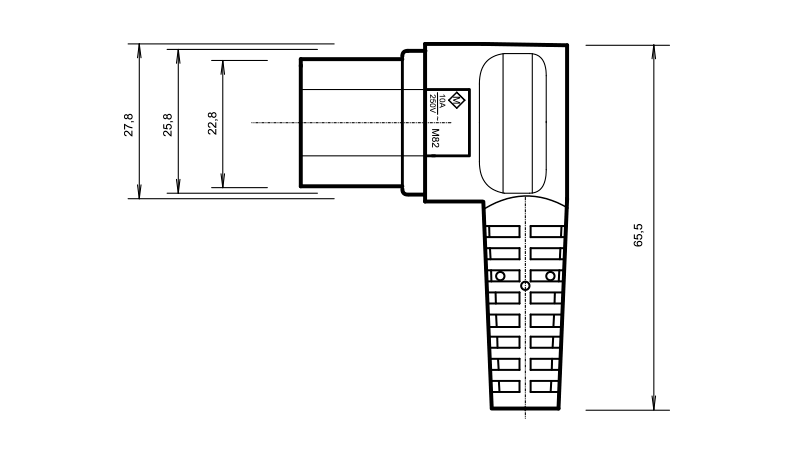

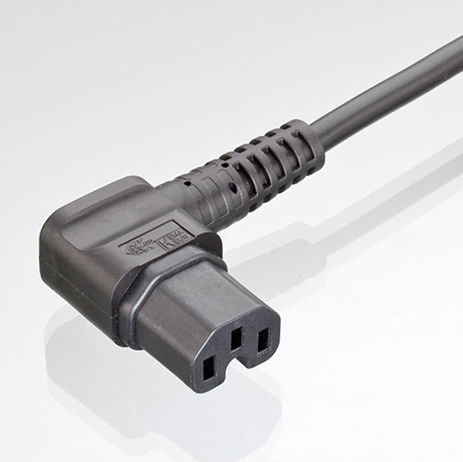

m82
Europe | M 82

appliance connector for safety class I

2-pole plug with earthing-contact,
connector for warm condition T120,
cable entry left
EN 60320-1:2001 C15, 10 A, 250 V~





Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05RR-F 3G 0,75
H05RR-F 3G 1,00
H05RR-F 3G 1,50
H05RN-F 3G 0,75
H05RN-F 3G 1,00
H07RN-F 3G 1,00













Enec05

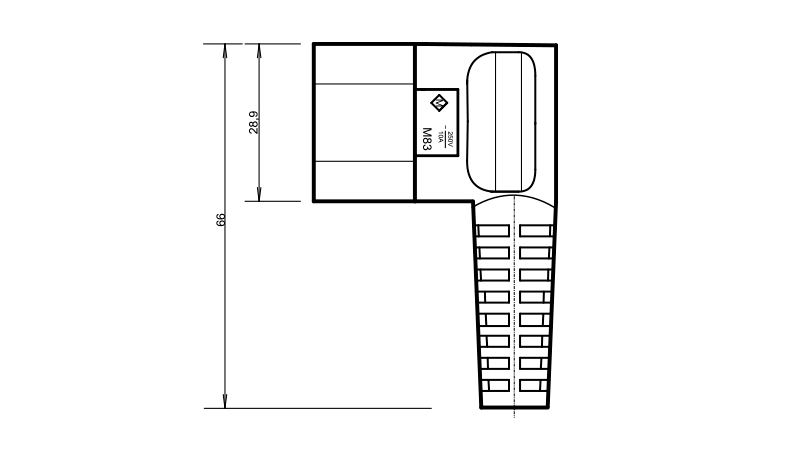

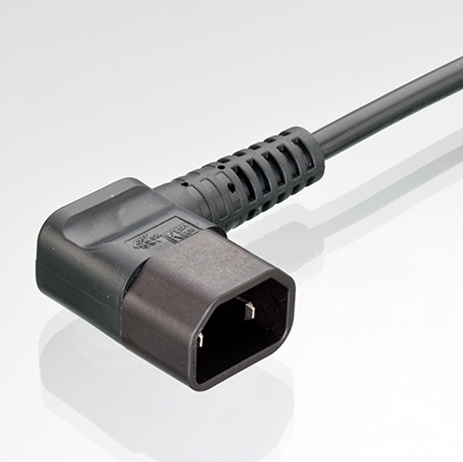

m83
Europe | M 83

plug connector for safety class II

2-pole plug without earthing-contact,
cable entry left
EN 60320-2-2:1998, 10 A, 250 V~





Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 2X 0,75
H05VV-F 2X 1,00
H05VV-F 2X 1,50
H05RR-F 2X 0,75
H05RR-F 2X 1,00
H05RR-F 2X 1,50
H05RN-F 2X 0,75
H05RN-F 2X 1,00
H07RN-F 2X 1,00
H07RN-F 2X 1,50













Enec05

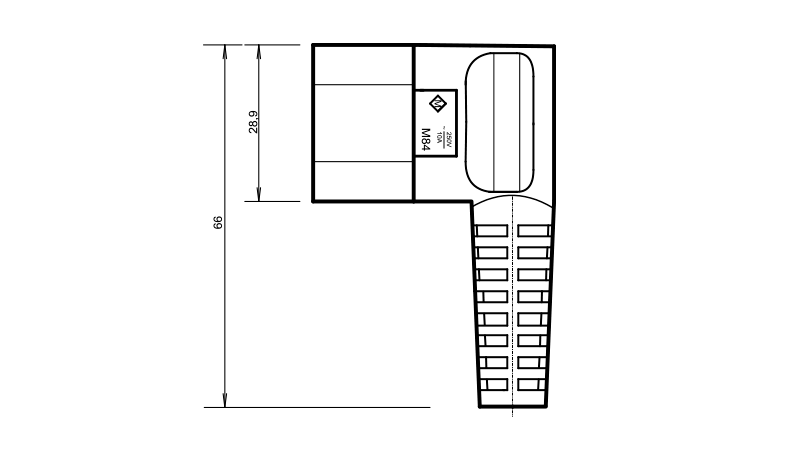

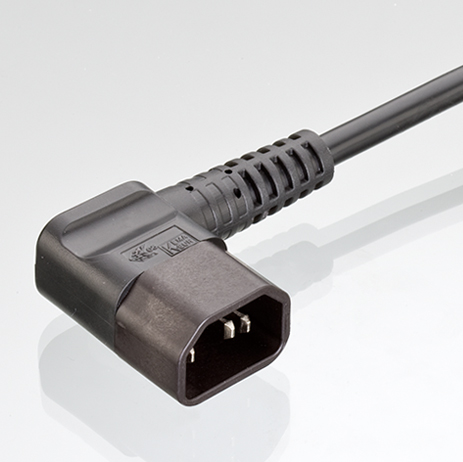

m84
Europe | M 84

plug connector for safety class I

2-pole plug with earthing-contact,
cable entry left
EN 60320-2-2:1998, 10 A, 250 V~



Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 0,75
H05VV-F 3G 1,00
H05VV-F 3G 1,50
H05RR-F 3G 0,75
H05RR-F 3G 1,00
H05RR-F 3G 1,50
H05RN-F 3G 0,75
H05RN-F 3G 1,00
H07RN-F 3G 1,00










-----











Enec05

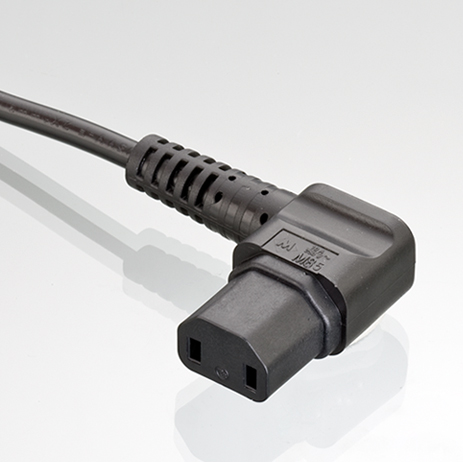

m85
Europe | M 85

appliance connector for safety class II

2-pole plug without earthing-contact,
cable entry right
EN 60320-1:1996+A1:96+A2:98
C17, 10 A, 250 V~



Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 2X 0,75
H05VV-F 2X 1,00
H05VV-F 2X 1,50
H05RR-F 2X 0,75
H05RR-F 2X 1,00
H05RN-F 2X 0,75
H05RN-F 2X 1,00
H07RN-F 2X 1,00
H07RN-F 2X 1,50













Enec05

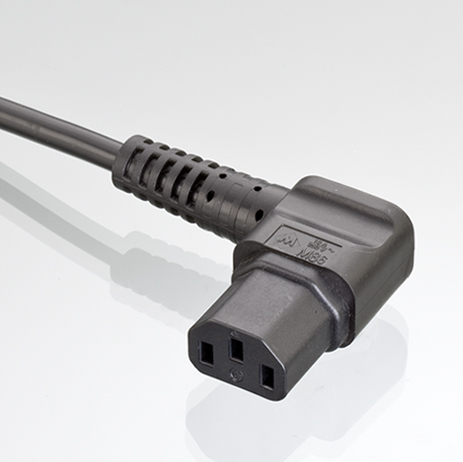

m86
Europe | M 86

appliance connector for safety class I

2-pole plug with earthing-contact,
cable entry right
EN 60320-1:2001 C13, 10 A, 250 V~

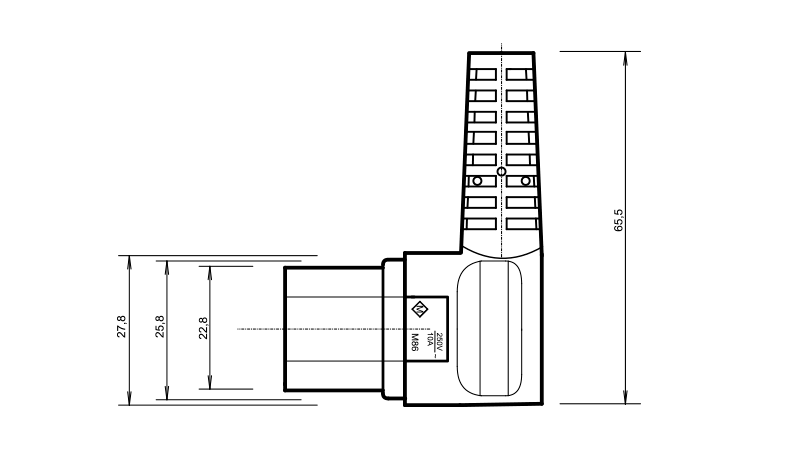

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 0,75
H05VV-F 3G 1,00
H05VV-F 3G 1,50
H05RR-F 3G 0,75
H05RR-F 3G 1,00
H05RR-F 3G 1,50
H05RN-F 3G 0,75
H05RN-F 3G 1,00
H07RN-F 3G 1,00










-----











Enec05

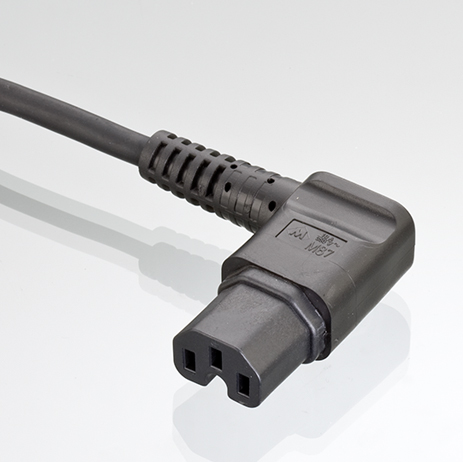

m87
Europe | M 87

appliance connector for safety class I

2-pole plug with earthing-contact,
connector for warm condition T120,
cable entry right
EN 60320-1:2001 C15, 10 A, 250 V~




Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05RR-F 3G 0,75
H05RR-F 3G 1,00
H05RR-F 3G 1,50
H05RN-F 3G 0,75
H05RN-F 3G 1,00
H07RN-F 3G 1,00










-----











Enec05

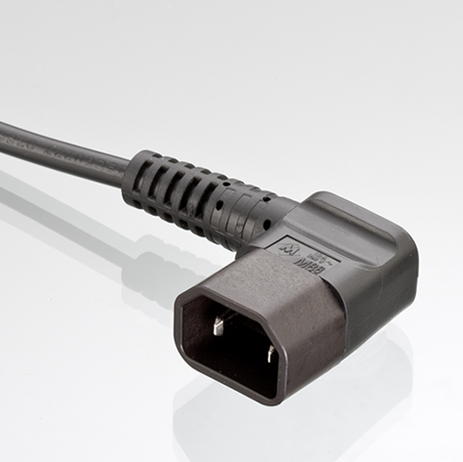

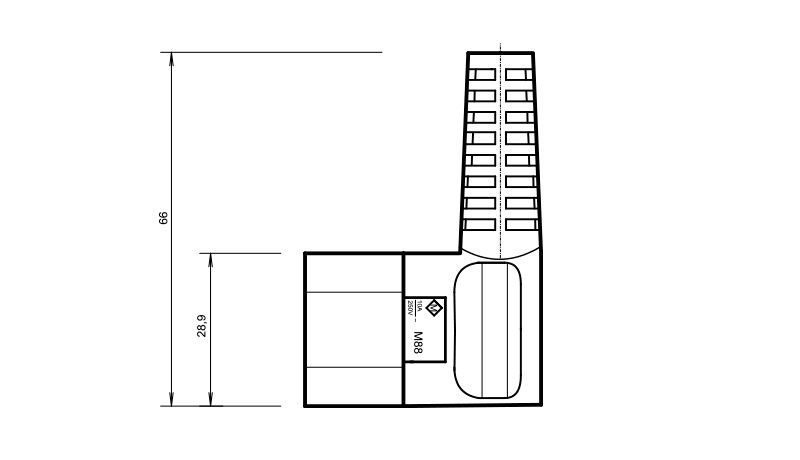

m88
Europe | M 88

plug connector for safety class II

2-pole plug without earthing-contact,
cable entry right
EN 60320-2-2:1998, 10 A, 250 V~



Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 2X 0,75
H05VV-F 2X 1,00
H05VV-F 2X 1,50
H05RR-F 2X 0,75
H05RR-F 2X 1,00
H05RR-F 2X 1,50
H05RN-F 2X 0,75
H05RN-F 2X 1,00
H07RN-F 2X 1,00
H07RN-F 2X 1,50













Enec05

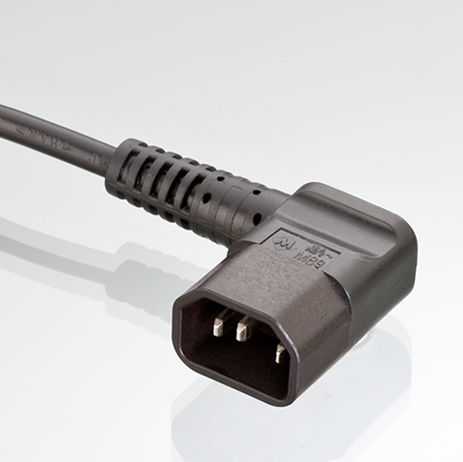

m89
Europe | M 89

plug connector for safety class I

2-pole plug with earthing-contact,
cable entry right
EN 60320-2-2:1998, 10 A, 250 V~





Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 0,75
H05VV-F 3G 1,00
H05VV-F 3G 1,50
H05RR-F 3G 0,75
H05RR-F 3G 1,00
H05RR-F 3G 1,50
H05RN-F 3G 0,75
H05RN-F 3G 1,00
H07RN-F 3G 1,00










-----











Enec05
